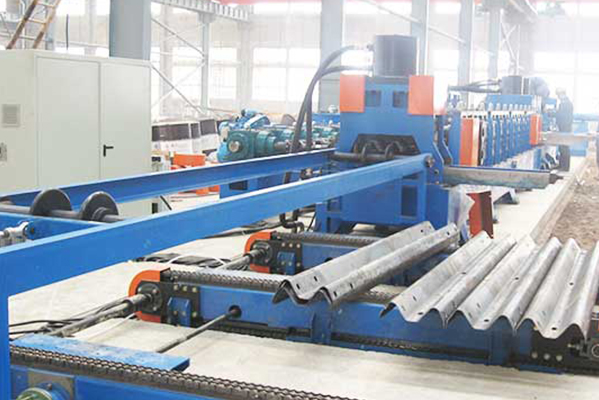

Guardrail Roll Forming Machine

Pressing speed: 10-25M / MIN

Pressing thickness: 3-8mm

Host power: 20KW

Control system: Panasonic PLC Omron encoder

Guardrail Roll Forming Machine

The Advantages of Guardrail Roll Forming Machine:

Zhengchuang Guardrail Roll Forming Machine, adopting roll forming method, can produce beautiful appearance, strong panels which are extensively used in wall construction or outdoor decoration. This type machine possesses advance and innovative technology that can provide convenient roller change. This type can be equipped with PLC control and touch screen.




The Application of Guardrail Roll Forming Machine:

Wuxi Zhengchuang Machinery Manufacturing Co., Ltd. (ZCM) Highway guardrails provide a visual and physical barrier between traffic and work areas. It is used for protection against accidents due to lift trucks or other mobile equipment in dock areas, aisles, around special equipment, . Reduce costly damage to equipment and inventory. Modular system is easily expanded or moved as needed. For indoor or outdoor use.

Highway Guard rail or guardrail, sometimes referred to as guide rail or railing, is a system designed to keep people or vehicles from (in most cases unintentionally) straying into dangerous or off-limits areas. A handrail is less restrictive than a guard rail and provides both support and the protective limitation of a boundary.We can make two waves, three waves for highway guardrail..


Features

1. Main motor power: 22kw

2. Station: adopt cast iron HT50

3.Decelerating motor: BWD14-43-37KW, made in Shanghai or Changzhou

4. Drive: chain driving

5. Main shaft dia: ¢120mm material: 45﹟forge steel

6. Roller material: GCR15 quenched 58°-62°,chromed

7. Roll station:15stations

8. Roller thickness: 3-5mm

9. Timing by transducer:5m--20m/min(not including punching)

10. Transducer: Panasonic made in Japan. 380V 50HZ

11. Computer: PLC

12. Computer operating panel: touching screen.


Technical data

Item NO

Description

Offered specification

1.0

Roll forming machine

4 meters length

1.1

Rolling speed

12-15m/min(not include cutting time)

1.2

Rolling thickness

0.18mm-0.4mm

1.3

Raw material

Galvanized color sheet G550

1.6

dimension

8000×1600×1500(mm)

1.7

Effective width

762mm

1.8

Feeding Coil width

940mm

1.9

Roller stations

6 stations

1.10

Roller material

45#forge steel, coated with chrome

1.11

Shaft diameter

Φ100mm

1.12

Transmission

By gears

1.13

Material of chain

45# forged steel with frequency quenching, 12A

1.14

Material of cutting

Cr12Mov with quench HRC58-62°

1.15

Voltage

220v, 60hz, 3 phase

1.16

Control box

Transducer
